Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of single strand barbed wire in China. If you're going to wholesale bulk single strand barbed wire made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.
Product Features
1. Structural Definition

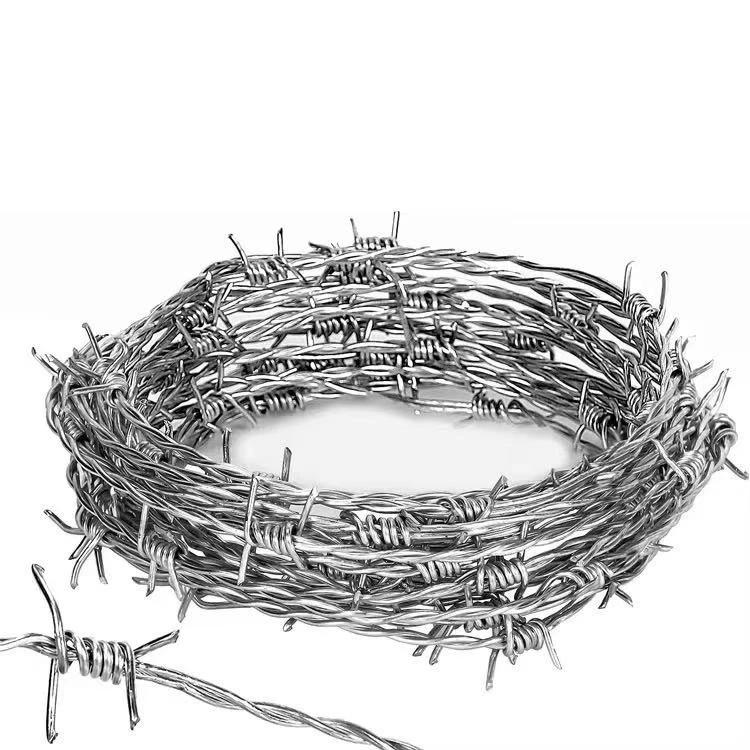

Single-strand barbed wire is the most basic type of barbed wire, consisting of a single main line wire with barbed wire wrapped around it at regular intervals. Compared to double-strand barbed wire (formed by twisting two main wires together), the single-strand version features a simpler structure and lighter weight.
2. Key Features
Feature Description:Cost-effective Simple structure and minimal material usage make it the lowest-cost option among all barbed wire types.
Lightweight & Flexible:Light in weight, making it easy to transport and install manually; suitable for large-scale deployment.
Easy Installation:The single-strand design allows for installation without complex equipment.
Corrosion Resistance:Hot-dip galvanized or PVC-coated finishes provide excellent rust and oxidation resistance.
High Adaptability:The single-strand wire offers good flexibility, allowing it to adapt to undulating terrain, rocky ground, or slopes.
3. Common Specifications
- Wire Gauge: Typically 10# (3.25 mm) to 16# (1.60 mm); commonly 12.5# (2.5 mm)
- Barb Spacing: 75 mm–150 mm (3–6 inches)
- Barb Length: 10 mm–25 mm
- Coil Length: 100 m–500 m/coil; commonly 200 m, 250 m, 400 m
- Coil Weight: 11 kg–50 kg/coil
- Material: Low-carbon steel (Q195, Q235), high-carbon steel, aluminum alloy, stainless steel
- Surface Treatment: Electro-galvanized, hot-dip galvanized (HDG), PVC coated, powder coated
- Zinc Coating Weight: Up to 275 g/m² for hot-dip galvanized line wire; up to 240 g/m² for barb wire
4. Comparison with Double-Strand Barbed Wire
Single-strand barbed wire is lighter, more flexible, and lower in cost; however, it stretches more easily under load and may sag over time. It is suitable for temporary fencing, light-duty protection, and cost-sensitive projects. In contrast, double-strand barbed wire offers greater strength and durability, making it ideal for permanent installations requiring high security.
FAQ
Q: What materials are used for single-strand barbed wire, and how should I choose based on the environment?
A: Common materials include carbon steel (general use), aluminum alloy (salt-spray corrosion resistance for coastal areas), and stainless steel (extreme corrosive environments). For general outdoor agricultural applications, hot-dip galvanized low-carbon steel wire is the most economical and durable choice.
Q: What is the difference between electro-galvanizing and hot-dip galvanizing?
A: Electro-galvanizing: Features a thin, shiny coating; suitable for dry climates or short-term use; lifespan of 5–10 years.
Hot-dip galvanizing (HDG): Involves dipping the steel wire into molten zinc, resulting in a thicker coating (matte gray appearance); offers 3–5 times the corrosion resistance of electro-galvanizing; suitable for long-term outdoor use; lifespan of 15–30 years.
Q: How do I choose the right wire gauge?
A: Permanent livestock fencing: 12.5-gauge (2.5mm) is the standard choice.
Heavy-duty security fencing or large livestock (e.g., bulls): 10-gauge (3.2mm) is recommended.
Light-duty applications (garden fencing, temporary fencing): 14- to 16-gauge is sufficient.
Q: What is the lifespan of single-strand barbed wire?
A: Lifespan depends primarily on the type of coating:
Electro-galvanized: 5–10 years
Hot-dip galvanized (heavy coating): 15–30 years
PVC-coated: 20–30 years (provided the PVC layer remains intact)
Q: How does barb spacing affect protective performance?
A: Closer barb spacing (e.g., 75mm) makes climbing more difficult and enhances protection, but it also increases costs. A standard spacing of 75mm–150mm strikes a balance between practicality and protective effectiveness.
Q: Can single-strand barbed wire be used for horse paddock fencing?
A: It is strongly discouraged. Horses are easily startled and have thinner skin than cattle; contact with barbed wire can cause severe lacerations. Smooth steel wire or electric fencing is recommended instead.
