Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of slope protection gabion in China. If you're going to wholesale bulk slope protection gabion made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.
Technical Specifications
| Parameter | Details |
|
Material |
Hot-dip galvanized steel wire / Galfan (zinc-aluminum alloy) / PVC-coated steel wire |
|
Mesh Type |
Double-twist hexagonal woven mesh |
|
Wire Diameter |
2.0mm – 4.0mm (typical: 2.7mm, 3.2mm, 3.4mm) |
|
Mesh Opening |
60×80mm, 80×100mm, 100×120mm, 120×150mm (custom available) |
|
Tensile Strength |
≥600MPa |
|
Elongation at Break |
≥15% |
|
Mesh Extensibility |
≥20% |
|
Zinc Coating |
≥240g/m² (hot-dipped) |
|
Box Sizes (Standard) |
1×1×1m, 2×1×1m, 3×1×1m, 4×1×1m (custom available) |
|
Mattress Height |
0.17m – 0.30m |
|
Color Options |
Silver, green, gray, dark green, black PVC-coated |
|
Slope Applicability |
Up to ≤70° gradient |
|
Certification |
ISO9001 |
Applications

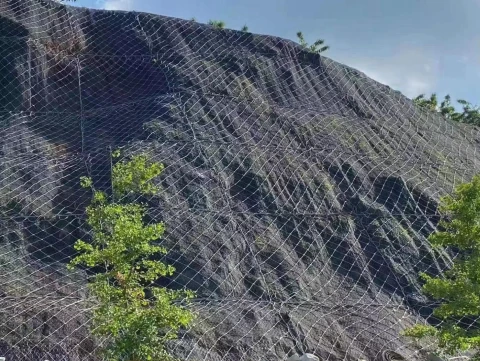

Our slope protection gabion mesh is trusted by engineers, contractors, and government agencies worldwide for:
Highway & Railway Embankments – Preventing landslides and rockfalls along transportation corridors
Riverbank & Coastal Protection – Erosion control and scour protection
Mining Excavation Faces – Stabilizing steep cut slopes
Dam & Reservoir Slopes – Reinforcement and overflow resistance
Construction Foundation Pits – Slope support and excavation protection
Landscaping & Greening Projects – Decorative retaining walls with vegetation integration
Channel Linings & Culvert Headwalls – Hydraulic structure protection
FAQ
Q: What's the difference between woven and welded gabion mesh?
A: Woven (double-twist hexagonal) gabion mesh offers greater flexibility and is the traditional choice for slope protection. Welded mesh provides a more rigid structure suitable for alternative fills like sand and gravel.
Q: How long do gabion systems last?
A: With proper installation and quality materials (hot-dip galvanized or PVC-coated), gabion systems typically last over 30 years.
Q: Can gabion mesh be used on steep slopes?
A: Yes. Our gabion mesh is suitable for slopes up to ≤70° gradient.
Q: Is the product eco-friendly?
A: Absolutely. Gabions are permeable, allowing natural drainage and vegetation growth. They blend into the natural landscape and support ecological restoration.
Q: Do you offer custom sizes?
A: Yes. We offer full customization based on slope gradient, soil/rock type, and hazard level. Contact us with your project requirements.
