Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of hexagonal gabion in China. If you're going to wholesale bulk hexagonal gabion made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.
Key Advantages
- Double-twist weave ensures a robust structure that resists unraveling
- High flexibility allows adaptation to complex terrain
- Cost-effective solution for large-scale projects
- Simple construction enables rapid assembly and filling
Applications

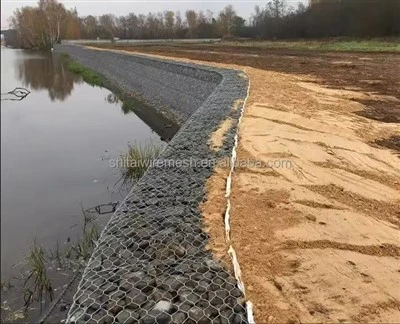

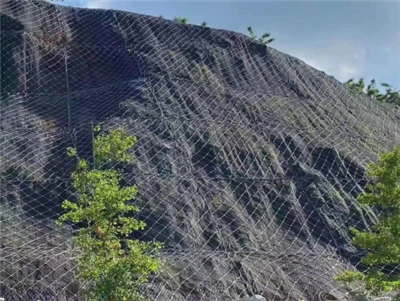

River training, flood control, slope protection, and retaining wall construction.
Production Process
Wire Preparation
Low-carbon steel wire-characterized by high corrosion resistance, high strength, and ductility-is selected as the raw material. In accordance with engineering design specifications, the wire diameter typically ranges from 2.0 mm to 4.0 mm. The raw material undergoes a cold-drawing process to reduce the wire rod to the target diameter.
01
Galvanizing / Coating
Drawn steel wire undergoes surface anti-corrosion treatment; common methods include:
Hot-dip Galvanizing: Metal coating weight is generally no less than 245 g/m².
Galvanized / Zn-5%Al Alloy (Galfan alloy): Offers superior corrosion resistance.
PVC Coating: Provides additional anti-corrosion protection for harsh environments.
02
Weaving
Surface-treated steel wires are woven using specialized mesh-weaving machines. Key features of the weaving process include:
Double-twisted hexagonal structure: Adjacent steel wires are twisted in pairs to form hexagonal mesh openings.
Triple-twist method: Continuous pairs of wires are woven with a three-half-turn twist.
Double-wire twist length: The twisted section measures at least 50 mm in length to ensure the anti-corrosion coating remains intact.
Woven into continuous rolls of high-strength hexagonal mesh.
03
Cutting & Assembly
The woven mesh panels are precision-cut according to design specifications.
Edge finishing (such as overlocking or hemming) is performed manually or mechanically.

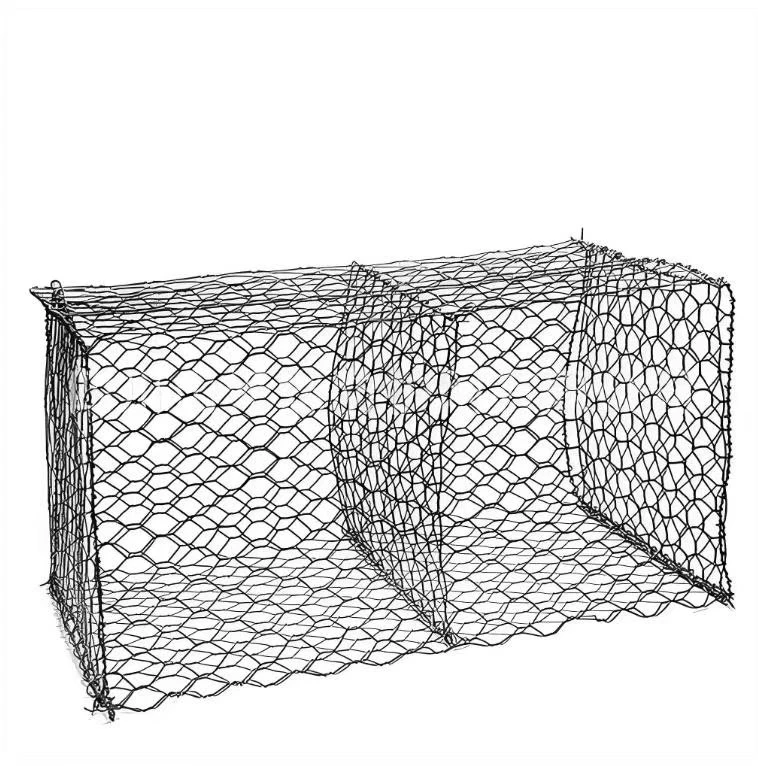

Components-including front and back panels, base panels, and diaphragms-are assembled into a box-like structure.
For box-type gabions, the front, back, base, and lid are typically formed by folding a single continuous mesh panel.
The finished units are compressed and bundled using a hydraulic press to facilitate transport.
04
Quality Control & Packaging
Rigorous pre-shipment quality inspections:
Verification of edge-fixing integrity
Structural consistency inspection
Dimensional tolerance compliance verification
Testing of metal coating weight, adhesion, uniformity, etc.
05
