Structure & Fireproof Principle

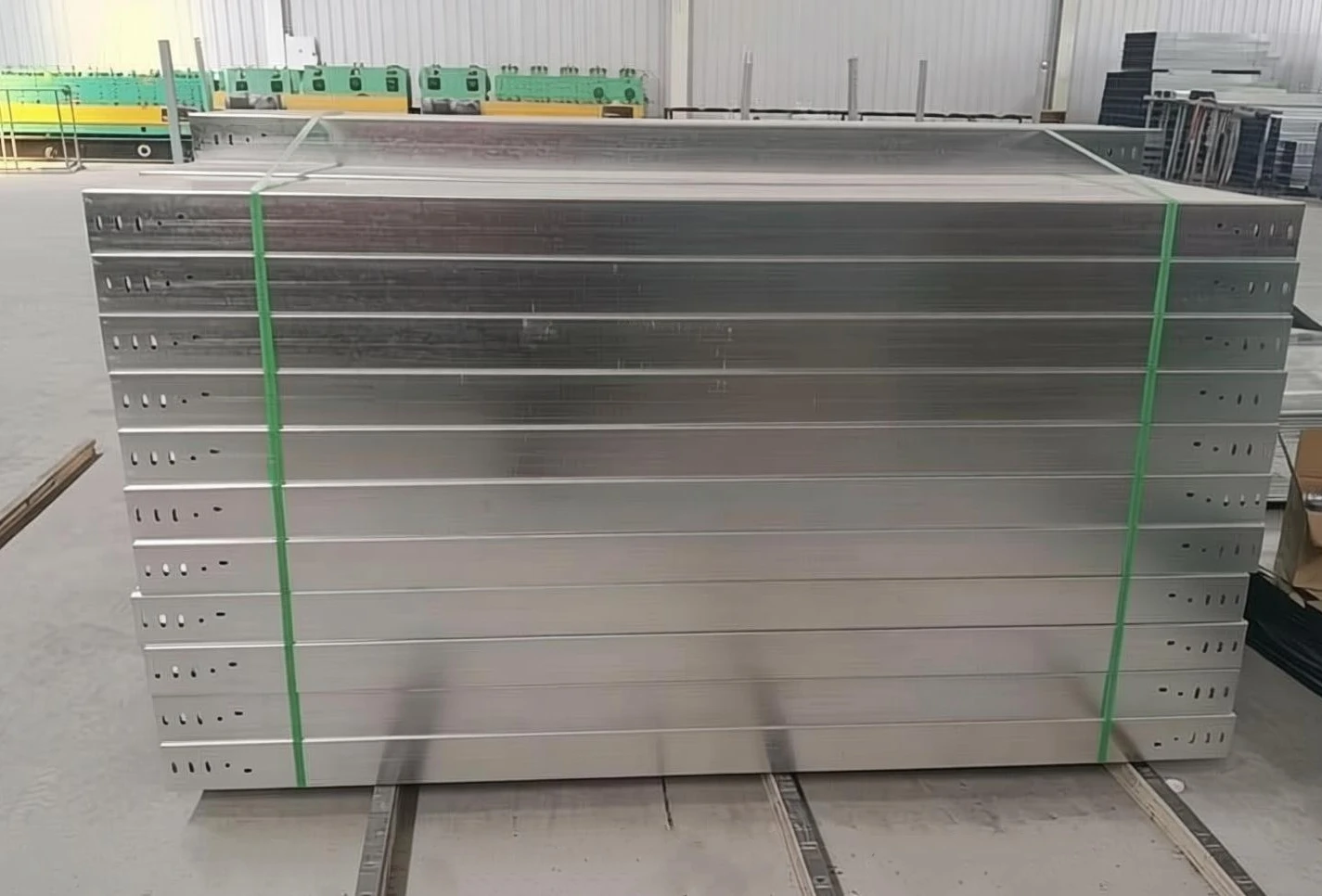

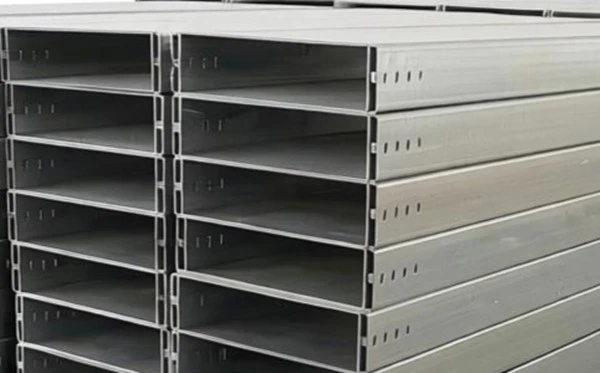

The tray body is made of high-quality cold-rolled steel or stainless steel sheet formed by bending. The structure can be divided into single-layer type (tray body with cover) and composite type (double-layer shell filled with fireproof insulation material). The surface is coated with a special fireproof coating or treated with flame-retardant electrostatic powder spraying.
Fire resistance is achieved through the following methods:
1. Intumescent fireproof coating: When exposed to high temperature, the coating rapidly expands and foams, forming a dense charred insulating layer that prevents heat transfer to the cables.
2. Fireproof filling material (composite type): Aluminum silicate wool or rock wool is filled between the double-layer shells, with extremely low thermal conductivity, capable of blocking flame high temperature for a long time.
3. Flame-retardant powder: Flame retardants (such as aluminum hydroxide or phosphorus-nitrogen compounds) are added to the epoxy powder for electrostatic spraying, achieving self-extinguishing during combustion with no dripping.
Performance Features
Excellent fire resistance rating
According to GB/T 9978 or BS 476 standards, the fire resistance time of composite fireproof trunking can reach 60, 90, or even over 120 minutes, ensuring critical circuits remain operational during the initial stage of a fire.
Good mechanical strength
The steel substrate ensures that the trunking maintains basic structural integrity under high temperatures without collapsing or deforming.
Low smoke & halogen-free (optional)
Low-smoke halogen-free flame-retardant coatings are available upon project requirements, producing low-toxicity smoke during a fire to ensure safe personnel evacuation.
Corrosion resistance combined with fire protection
The fireproof coating can be combined with galvanized or powder-coated primer to meet both daily anti-corrosion and emergency fire protection needs.
Core Advantages
Protects life and property: During a fire, it provides critical power and signal transmission channels for fire pumps, smoke exhaust fans, emergency lighting, and alarm systems, buying valuable rescue time.
Complies with national fire codes: The product is certified by national fire testing centers, meeting the requirements of Building Design Fire Protection Code (GB 50016) and Cable Fire Protection Standards (GB 29415).
Easy installation: The installation method is the same as conventional cable trays, requiring no special tools. Connecting accessories (elbows, tees, etc.) are also fireproof treated.
Economical and practical: Compared to mineral insulated cables (e.g., BTTZ), the combined cost of fireproof trunking plus ordinary flame-retardant cables is lower, and construction is simpler.
Applicable Scenarios
Fire power supply trunks in high-rise buildings
Emergency lighting systems in subways, tunnels, and airports
Backup power circuits in hospital operating rooms and data centers
Critical control loops in petrochemical plants and power plants
Fire alarm and evacuation indication circuits in crowded places such as shopping malls, schools, and hotels
