Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of steel grid plate in China. If you're going to wholesale bulk steel grid plate made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.
Core Structure and Materials
Load-bearing flat steel: The main load-bearing component, specifications such as 25/30/40mm high, 3–5mm thick; available in flat, serrated (anti-slip), and I-beam types.
Crossbars: Commonly used 5×5 twisted square steel, spacing 50/100mm, to fix the flat steel and enhance stability.
Materials:
Carbon steel Q235B: Hot-dip galvanized (60–85μm), outdoor lifespan 15–20 years, high cost-effectiveness.
Stainless steel 304/316L: Strong corrosion resistance, suitable for chemical, food, and coastal applications.
Aluminum alloy: Lightweight, used in special scenarios.
Mainstream Types

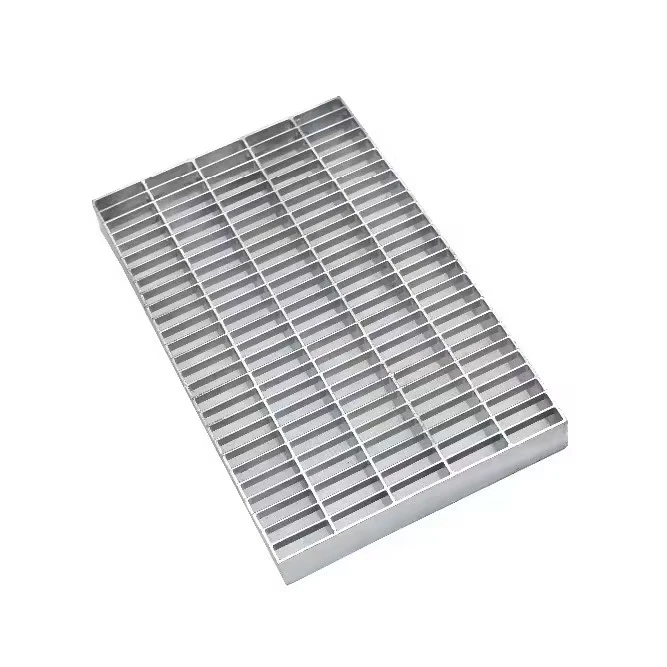

Welded Steel Grating
Flat steel bars are resistance welded to crossbars. High strength, low cost, and most commonly used.
01
Press-locked Steel Grating
Flat steel bars are perforated, and crossbars are pressed in and interlocked. No weld points, flat surface, suitable for irregular/high-precision applications.
02
Serrated Steel Grating
Flat steel bars have serrations for slip resistance. Used for stair treads and wet/oily platforms.
03
Heavy-duty Steel Grating
Flat steel bars are thickened (6–12mm) with denser spacing. Load capacity ≥10kN/㎡. Used for ports and driveways.
04
Stair Treads
Special stair treads with anti-slip front guard plates, conforming to GB4053.2 standard.
05
Specifications and Models (Marking Example)
| Model Format | Flat Steel Height × Thickness / Flat Steel Spacing / Crossbar Spacing |
| Example | G253/30/100. G = Steel Grating; 25 = Flat Steel Height 25mm; 3 = Thickness 3mm; 30 = Flat Steel Spacing 30mm; 100 = Crossbar Spacing 100mm. |
|
Common Specifications: |
|
| 253/30/100 | Approx. 20kg/㎡, Lightweight Platforms, Walkways. |
| 255/30/100 | Approx. 32kg/㎡, Stair Treads. |
| 305/30/100 | Approx. 38kg/㎡, Platforms, Carriages. |
| Product Dimensions | Customizable according to customer requirements. |
Core Advantages
High load-bearing capacity and light weight: Approximately 60% lighter than solid steel plates, reducing support costs.
Excellent ventilation and drainage: High permeability allows rainwater and sewage to drain quickly, preventing water and dust accumulation.
Anti-slip and safe: The serrated flat steel provides anti-slip protection, suitable for wet, oily, and outdoor environments.
Corrosion resistant and durable: Hot-dip galvanized/stainless steel, maintenance-free, and long service life.
Easy installation: Secured with bolts/clamps, quick installation, and easy disassembly and maintenance.
