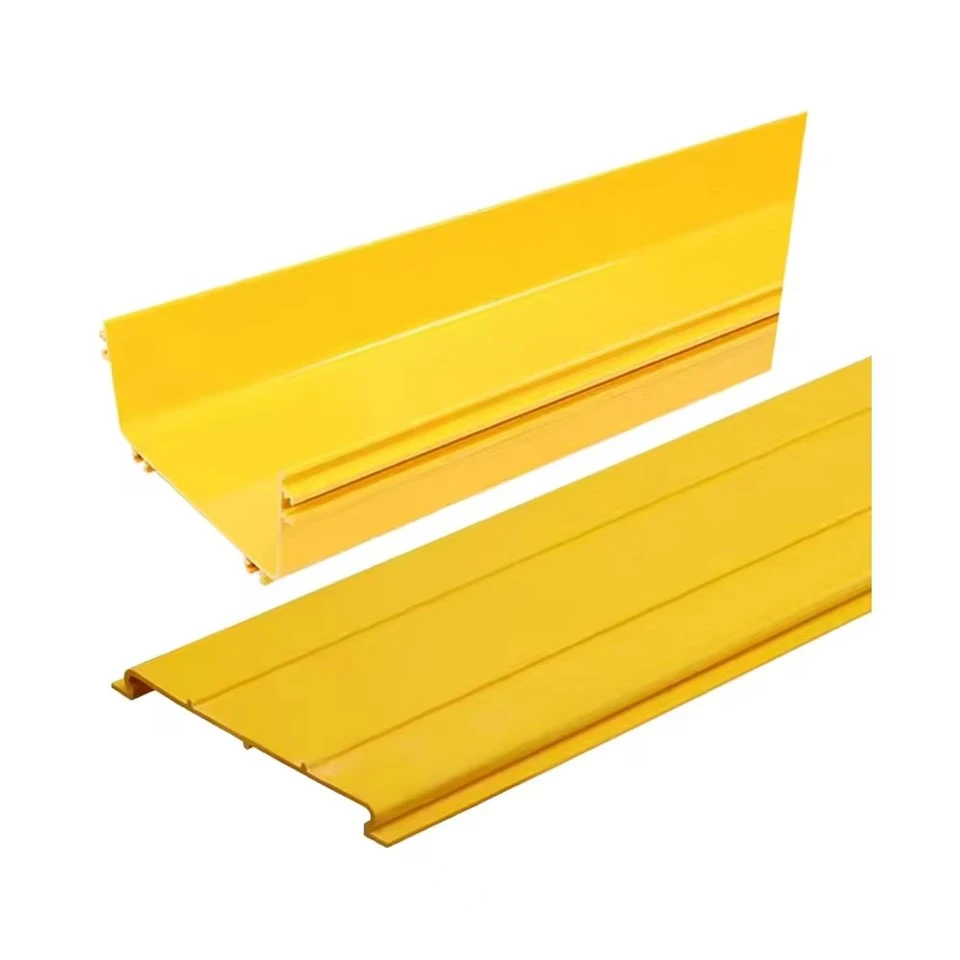

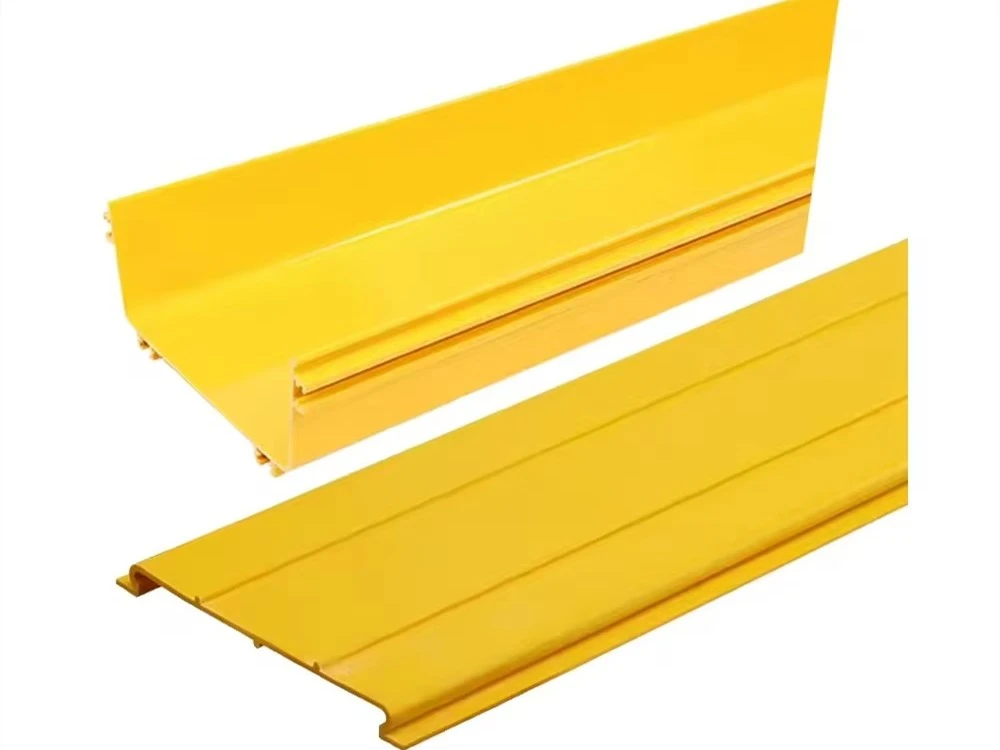

Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of abs fiber optic duct in China. If you're going to wholesale bulk abs fiber optic duct made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.

Product Features

The ABS material, combined with the special requirements of fiber optic cabling, endows ABS fiber optic conduits with the following significant characteristics:

Excellent Impact Resistance:

The butadiene component in ABS provides excellent toughness, enabling it to withstand external physical impacts, being stepped on, or heavy pressure, effectively protecting the fragile internal optical fibers from damage.

Smooth Inner Wall, Reduced Attenuation:

The inner wall of the conduit is precision polished, resulting in an extremely low coefficient of friction. This minimizes resistance during cable insertion, preventing scratches on the fiber sheath, while also ensuring the bending radius of the fiber, avoiding optical signal attenuation caused by macro-bending or micro-bending.

Flame Retardant and Heat Resistant:

Made of flame-retardant ABS material (up to V0 rating), it is self-extinguishing and does not support combustion; its heat resistance temperature is typically between 85℃ and 100℃, allowing it to adapt to the high ambient temperatures of densely equipped areas such as computer rooms.

Core Features

Damage-free for optical fibers	Full-circular arc design, angle R≥40mm, ensuring the bending radius of the optical fiber and reducing attenuation.
Flame-retardant and safe	ABS/PC/ABS/PVC, low smoke, halogen-free, FV-0 rating, standard fireproof for data centers.
Smooth inner wall	Burr-free, allowing the optical fiber to lay naturally and preventing fiber kinking.

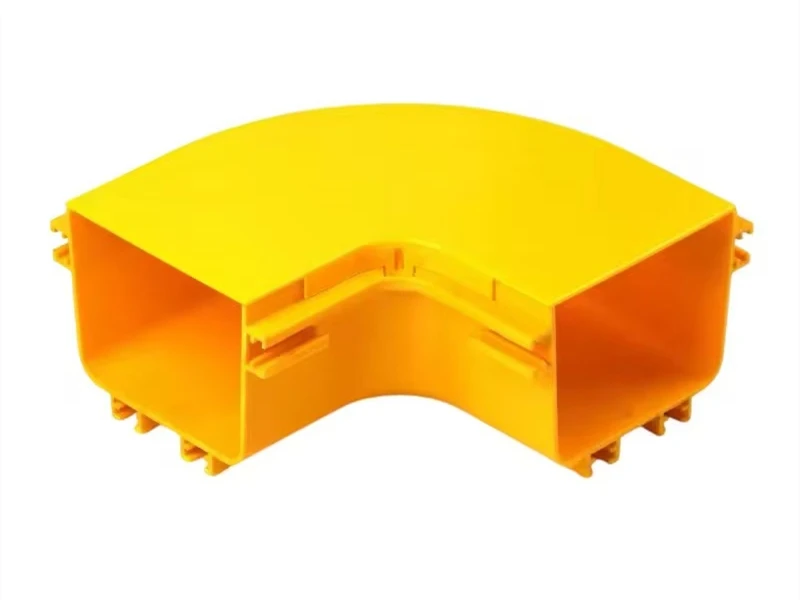

Modular design	Straight-through, elbow, tee, cross, and fiber outlet ports, tool-free quick assembly.
Clear cabling	Separate cabling in main and column slots, convenient for expansion and maintenance.
Long lifespan	Anti-aging, designed lifespan of 20+ years.

Common Specifications (Width × Height, mm)

Standard width	120, 240, 360.
Standard height	50, 100.
Standard length	2m/3m, customizable.
Color	Yellow.

Mainstream Materials

ABS/PC-ABS (Preferred):

High strength, high toughness, aging resistance, and environmentally friendly (RoHS compliant).

Flame-retardant PVC:

High cost-performance ratio, good insulation, commonly used in general computer rooms; slightly poorer low-temperature toughness.

What is an ABS fiber optic duct? What distinguishes it from a standard cable tray?

Material: ABS engineering plastic, which is durable, impact-resistant, and resistant to brittleness at low temperatures.
Applications: Specifically made for fiber optic pigtails and patch cords, with a focus on flame-retardant insulation, fill rate control, and bending radius management; standard cable trays are better suited for general-purpose cables.
Structure: Usually consists of covers, elbows, tees, crosses, and other components that make up a full fiber optic cable system.

Why are ABS fibre optic cable trays frequently selected for data centers and server rooms?

Flame-retardant + Low smoke and low toxicity: Flame-retardant ABS is appropriate for server rooms with high personnel and equipment density since it can attain the GB/T2048 FV-0 standard and is less likely to emit poisonous gases in the case of a fire.
Excellent insulating performance lowers the chance of short circuits by maintaining high insulation resistance even in humid conditions.
Lightweight and simple to install: Installation is more effective and puts less strain on the floor than with metal cable trays.
Fibre optic friendly: By designing bends in accordance with bending radius specifications, small-radius bends can prevent damage to the fibre optic cable.
