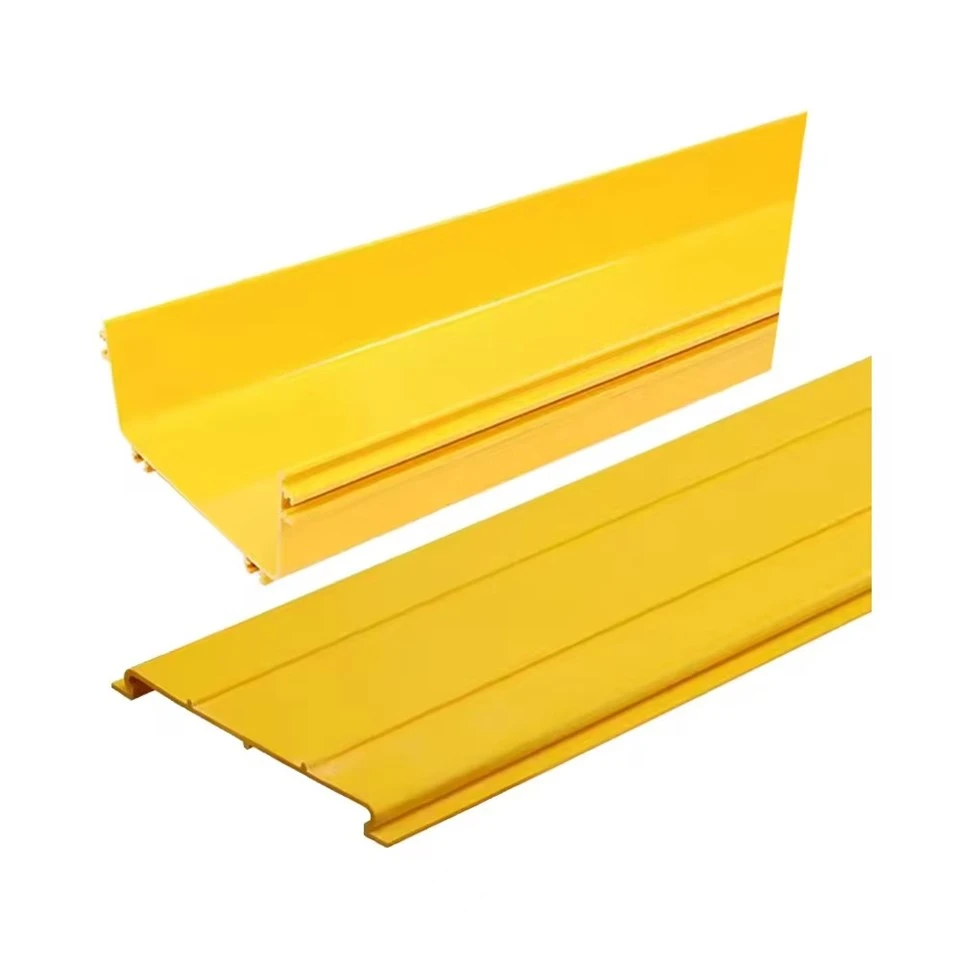

Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of pvc fiber optic trunking in China. If you're going to wholesale bulk pvc fiber optic trunking made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.
Product Benefits
Protects optical fibres and lowers signal attenuation
The large-arc design at corners and smooth, burr-free interior guard against excessive bending or fibre breakage, thereby preventing micro-bending loss and guaranteeing steady signal transmission.
Safe, dependable, and flame-retardant
PVC is a great insulator, non-conductive, and free of eddy current effects. When flame retardants are added, it satisfies the UL94 V0 flame-retardant standard, self-extinguishing when the flame is extinguished, preventing the spread of fire in the computer room.
With a lifespan far longer than that of metal cable trays
It is especially suitable for harsh environments like underground pipe corridors, coastal high-salt spray environments, or chemical plants due to its resistance to rust, acid and alkali, and moisture.
Lightweight and great-Strength, Easy Installation
It weighs only 1/4 to 1/5 of metal cable trays, which lowers floor load; it uses snap-fit or flange connections, which eliminate the need for heavy tools or complicated welding, leading to great construction efficiency.
Aesthetically Pleasing and Easily Managed

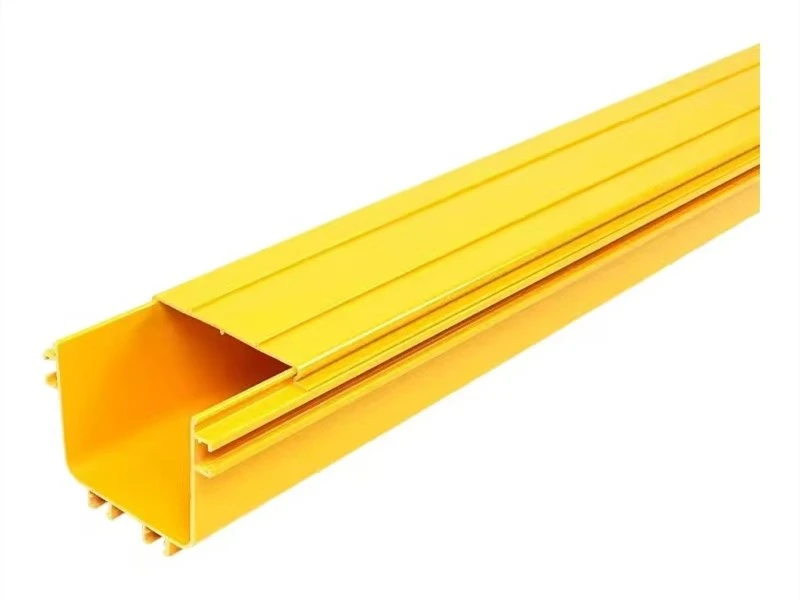

The tray cover design is dustproof, keeping optical fibres clean, and it usually employs striking colours to distinguish it from cable trays, making future maintenance and extension easier.
Electromagnetic Shielding Immunity
PVC is perfect for communication equipment rooms with exceptionally high electromagnetic environment requirements since it is a non-metallic material that is immune to external electromagnetic interference and does not induce electromagnetic leakage.
Manufacturing Procedure
Using the common extruded straight channel as an example, the production process of PVC fibre optic channels is highly automated and consists mostly of the following steps:
Preparing raw materials (mixing and batching ingredients)
Use a rigorous formula to weigh PVC resin, stabilisers, flame retardants, modifiers, etc.
To guarantee that the additives coat the resin particles uniformly, place them in a high-speed mixer for hot mixing (temperature reaches 110–120°C).
To avoid clumping, put them in a cold mixer and let them cool to about 40°C to create a dry-mixed powder.
Moulding by extrusion
A twin-screw extruder's hopper is filled with the dry mixture.
The material is plasticised into a molten state by the shearing and heating action of the screws while the extruder barrel is heated in sections (about 160°C to 190°C).
The channel's initial cross-sectional shape is formed by extruding molten PVC through a die of a particular shape.
Cooling and Shaping
The newly extruded profile needs to be put in a vacuum shaping chamber right away because it is so soft and hot. To ensure dimensional precision and prevent distortion, the profile is firmly forced against the inner wall of the shaping die using vacuum suction.
After that, it goes into a cooling water tank, where the profile is cooled to room temperature by circulating cold water, enabling it to completely solidify and set.
Traction and Cutting
The cooled channel is pulled out at a steady speed by the traction machine. To avoid stretching, thinning, or buildup, the speed must be equal to the extrusion speed.
Injection Moulding of Accessories:
Injection moulding machines are used to create parts like channel covers, clamps, connectors, and elbows that cannot be extruded.
Packing and Inspection
Examine the appearance to make sure the surfaces are smooth and devoid of bubbles, fissures, and deformation.
Dimensional Inspection: Use callipers to measure the height, inner width, and wall thickness to make sure they are within tolerances.
Perform load-bearing, drop, and flame retardant tests as part of the performance sampling inspection.
Label, package, and store for shipping after the inspection is complete.
