Product Details

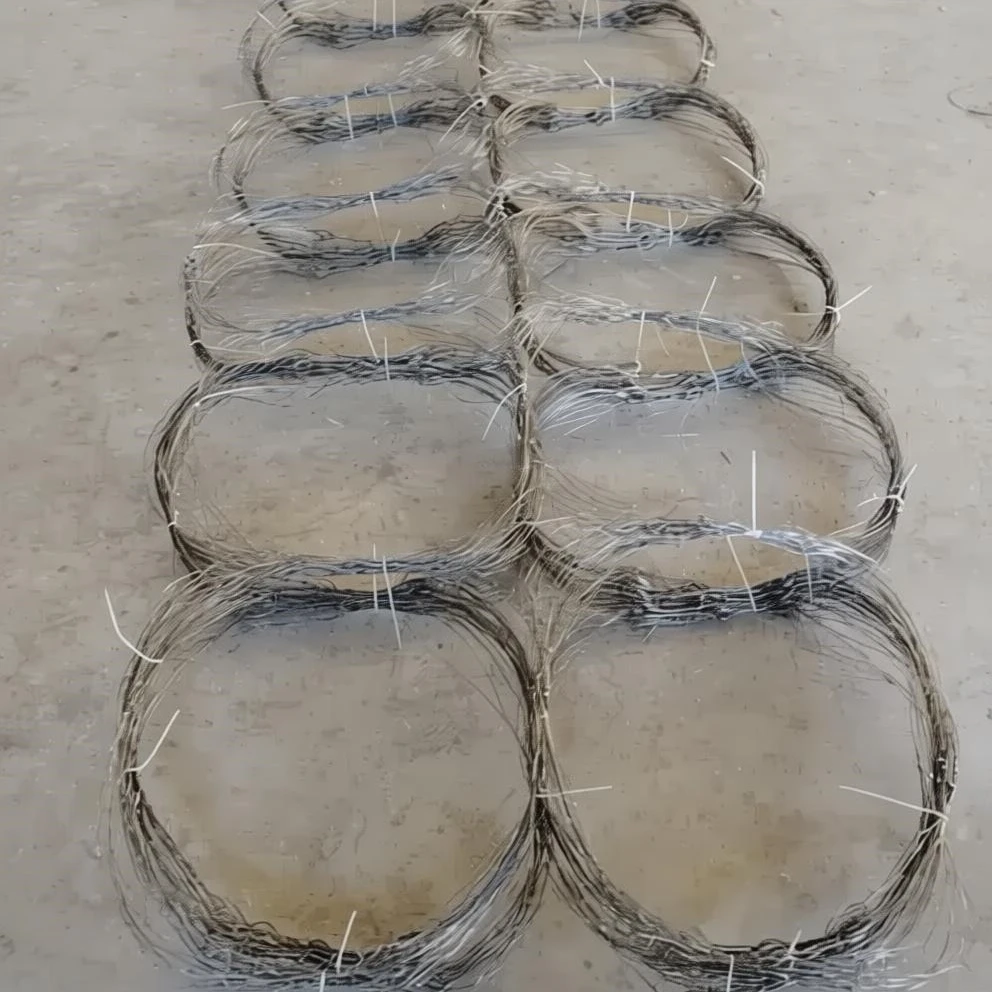

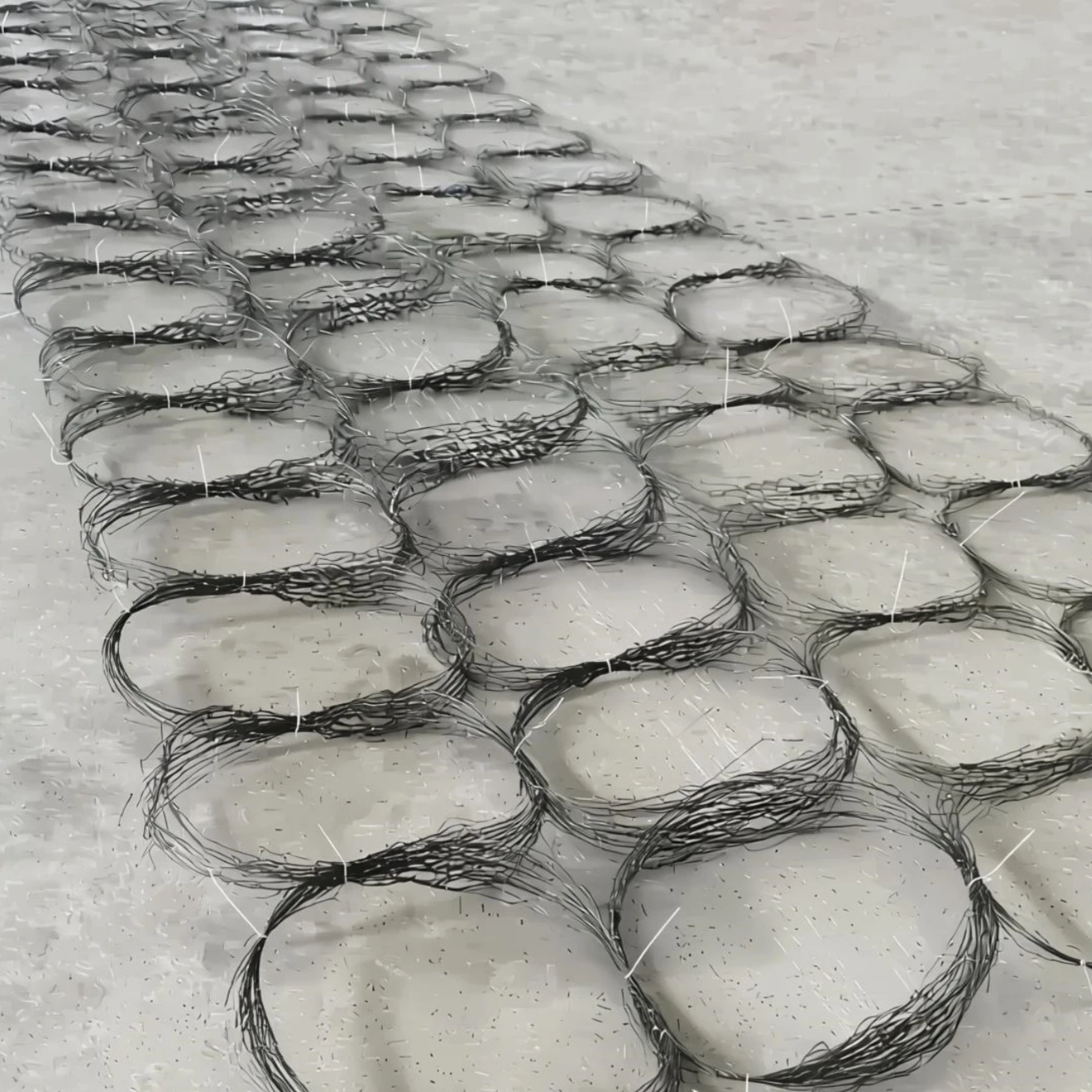

Anti-tank netting, often referred to as tank trap netting, tank barrier netting, or anti-tank entanglement netting, is a passive defensive barrier made especially to prevent, slow, or even stop tanks and other armoured vehicles from moving.
It works by establishing a deployed barrier zone on the ground and using the entanglement effect of the wire strands to effectively neutralise a vehicle's motion.
It is typically woven from high-strength, corrosion-resistant metal wire.
Anti-tank nets have several benefits over conventional anti-tank barriers, such as low visibility, lightweight design, and quick deployment.
They can be secretly put in difficult terrain, such snow, sand, or thick grass, to create tactical surprise by making opposing forces unintentionally stumble into the obstacle zone.
Because of this, the device is commonly known as the "Stealth Tank Trap."
Technical Specifications & Materials
|
Category |
Specifications |
|
Materials |
Galvanized Carbon Steel Wire, Stainless Steel Wire, High-Strength Steel Wire |
|
Wire Diameter Range |
0.5mm / 0.6mm / 0.8mm / 0.9mm |
|
Surface Treatment |
Hot-Dip Galvanizing / High-Zinc Galvanizing / PVC Coating |
|
Manufacturing Process |
Mechanical Weaving + Coil Forming |
|
Surface Reinforcement |
Optional addition of barbs or razor blades to enhance deterrent capability |
|
The product can be further categorized based on surface treatment processes (galvanizing/hot-dip galvanizing/PVC coating), materials (carbon steel/stainless steel), and tactical requirements (heavy-duty/low-visibility/rapid-deployment). Various specifications and configurations are available to meet multi-tiered requirements, ranging from temporary emergency defenses to permanent border fortifications. All products can be customized according to client-specified dimensions. |
|
Manufacturing Process
1. Feed four separate spools of wire through the bent and straight tubes, placing the curved tubes in the middle and the straight tubes on the outside. At regular intervals, fasten the wire ends to the tubes. Begin wrapping the first loop in a clockwise direction. After the first loop is finished, use a clip to secure it.
2. Twist the wires to create a "twist knot" (or "flower") after finishing the second loop.
3. Once the third loop is finished, use a single clip to secure the second and third loops together.
4. Create another twist knot after finishing the fourth loop, switching places with the preceding knot. Use a clip to secure each wire intersection in the middle area.
5. perform the figure-eight winding: for the second loop, perform the figure-eight winding at both ends of the mesh section; skip the first loop.
6. A whole mesh unit has 25 twist knots and a total of 50 layers. While the junctions at the mesh's outer borders are left unclipped, the wire intersections in the mesh's center are secured with clips. A self-inspection must be completed before starting this work, and a quality control inspector must then approve it.
The four separate wires are run through the bent and straight tubes, with the bent tubes in the middle and the straight tubes on the outside. The wires are fastened to the tubes at regular intervals.
To satisfy particular customer needs, this product can be produced utilising a variety of processing techniques.
