Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of tank trap net in China. If you're going to wholesale bulk tank trap net made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.
Useful Situations
Military defence includes tactical ambush zones, tank and armoured vehicle manoeuvre route interdiction, forward defensive positions on the battlefield, and perimeter security for forward operating bases (FOBs).
Borders and Checkpoints: Covert deployment to obstruct cross-border vehicle and people movement along national borders, important border sectors, and checkpoint perimeters.
Perimeter security for high-value targets, including military posts, radar stations, airports, munitions depots, communication centers, and nuclear power plants, is known as critical infrastructure protection.
Urban Counter-Terrorism and Security: Temporary security barriers for major public events; defence against car ramming assaults at strategic areas (such as government buildings, embassies).
Building anti-vehicle barriers around encampments quickly is part of peacekeeping and counterterrorism operations.
Training and Exercises: During live-action combat drills, troops get obstacle training and manoeuvre interdiction simulation.
Technical Specifications and Materials
|
Category |
Specifications |
|
Materials |
Galvanized Carbon Steel Wire, Stainless Steel Wire, High-Strength Steel Wire |
|
Wire Diameter Range |
0.5mm / 0.6mm / 0.8mm / 0.9mm |
|
Surface Treatment |
Hot-Dip Galvanizing / High-Zinc Galvanizing / PVC Coating |
|
Manufacturing Process |
Mechanical Weaving + Coil Forming |
|
Surface Reinforcement |
Optional addition of barbs or razor blades to enhance deterrent capability |
|
The product can be further categorized based on surface treatment processes (galvanizing/hot-dip galvanizing/PVC coating), materials (carbon steel/stainless steel), and tactical requirements (heavy-duty/low-visibility/rapid-deployment). Various specifications and configurations are available to meet multi-tiered requirements, ranging from temporary emergency defenses to permanent border fortifications. All products can be customized according to client-specified dimensions. |
|
FAQ
Q1: What is a Tank Trap Net?
A: The purpose of a Tank Trap Net, a defensive device made of tangled metal mesh, is to impede, postpone, or stop the progress of enemy tanks and other armoured vehicles. Its main objective is to create barriers in strategic locations to limit the flow of armoured convoys and tanks. Its main purpose is to act as a "unobtrusive obstacle" that physically entangles tanks' tracks or wheels, making them immobile.
Q2: How does the Tank Trap Net operate?
A: The movement mechanism of tracked vehicles serves as the foundation for the Tank Trap Net's anti-tank concept. A tank's tracks create friction with the metal net as it tries to go through it, eventually becoming tangled. The metal net gradually catches the tank's drive sprockets as it moves forward, immobilising the car. Additionally, the tracks and running gear may sustain more damage if the net is equipped with surface-mounted barbs or blades.
Q3: What specifications and materials are available for the Tank Trap Net?

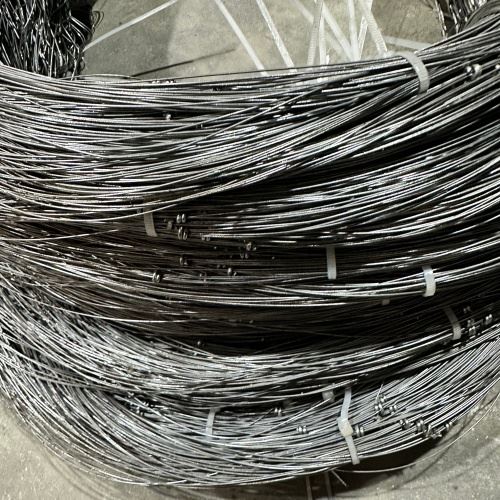

A: High-strength, corrosion-resistant metal wires (such as galvanised iron wire, carbon steel wire, or stainless steel wire-e.g., SUS 304/316) are usually used in precise machine weaving to create the Tank Trap Net. Mesh opening widths range from 25 to 50 cm, and common wire diameters are 0.5 mm, 0.6 mm, 0.8 mm, and 0.9 mm.

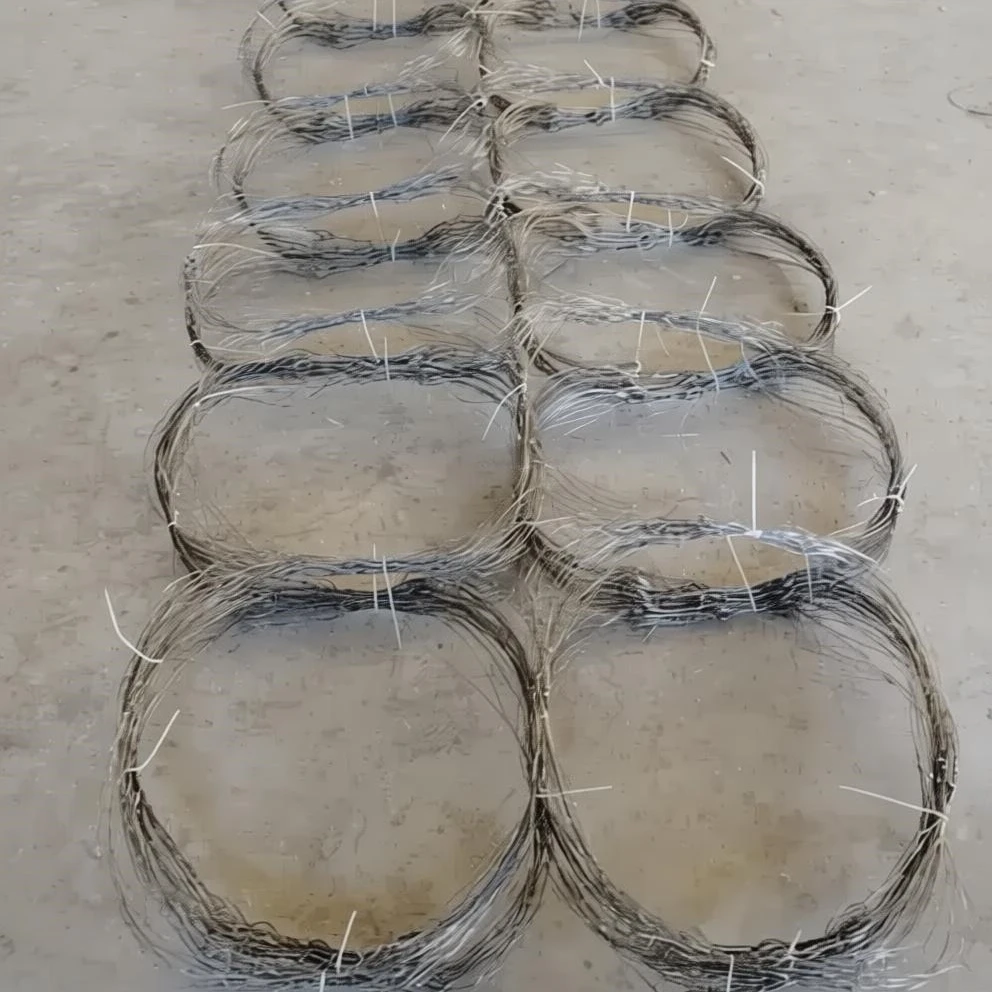

There are two main configurations of the product available: Typically measuring 10 meters in length, 4 meters in width, and 40 centimetres in height, Type A is a wave-shaped metal wire mesh that can be deployed on grass or level ground. Type B, on the other hand, has a wheel-like structure created by stacking 10 to 20 cylindrical metal mesh coils, providing improved stability. Common measurements after deployment are 10 m × 10 m × 1.4 m or 10 m × 5 m × 1.4 m. The entire assembly, which consists of 40 ground stakes and fastening rings, weighs no more than 30 kg. To improve their deterrent and destructive power, certain versions additionally come with optional barbed wire or razor blades. The surface can be coated with a black lacquer or galvanised.
