Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of heavy duty mesh cable tray in China. If you're going to wholesale bulk heavy duty mesh cable tray made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.
Product Applications
Heavy Industrial Plants
Manufacturing workshops, steel mills and automotive production lines require cable support systems that can withstand long-term vibration, heavy dust and occasional impact. Installed above production equipment, along factory floors or under raised floors, Heavy Duty Mesh Cable Tray hold motor power cables, welding power lines and sensor network cables steadily. The open grid structure avoids dust accumulation and ensures effective heat dissipation for high-current cables, supporting stable long-term operation of production equipment.
Power Generation Stations
Thermal, hydroelectric and solar power stations are equipped with thousands of meters of power and control cables. Heavy Duty Mesh Cable Tray are widely used in turbine halls, switchyards and battery energy storage systems (BESS). Their robust structure easily bears the weight of multi-layered large-diameter cables, while the breathable mesh design facilitates continuous air flow. This effectively prevents local overheating around generators and transformers, a key factor in ensuring safe power station operation.
Oil & Gas Facilities
Refineries, petrochemical plants and offshore platforms demand corrosion-resistant cable management solutions suitable for heavy instrument and power cables. Made from 304/316L stainless steel, Heavy Duty Mesh Cable Tray resist salt spray, chemical erosion and extreme temperature fluctuations. They can be mounted on elevated walkways or fitted with cable ladders, providing stable and safe routing for core circuit cables in harsh marine and chemical environments.
Infrastructure Projects
Tunnels, metro transit systems and airport facilities adopt Heavy Duty Mesh Cable Tray to route fire alarm, lighting and ventilation system power cables. Optimized structural rigidity allows the trays to span longer gaps between mounting brackets, cutting down the number of fixtures and shortening on-site installation time. When coated with fire-resistant materials, they also serve as a key part of passive fire protection systems for building infrastructure.

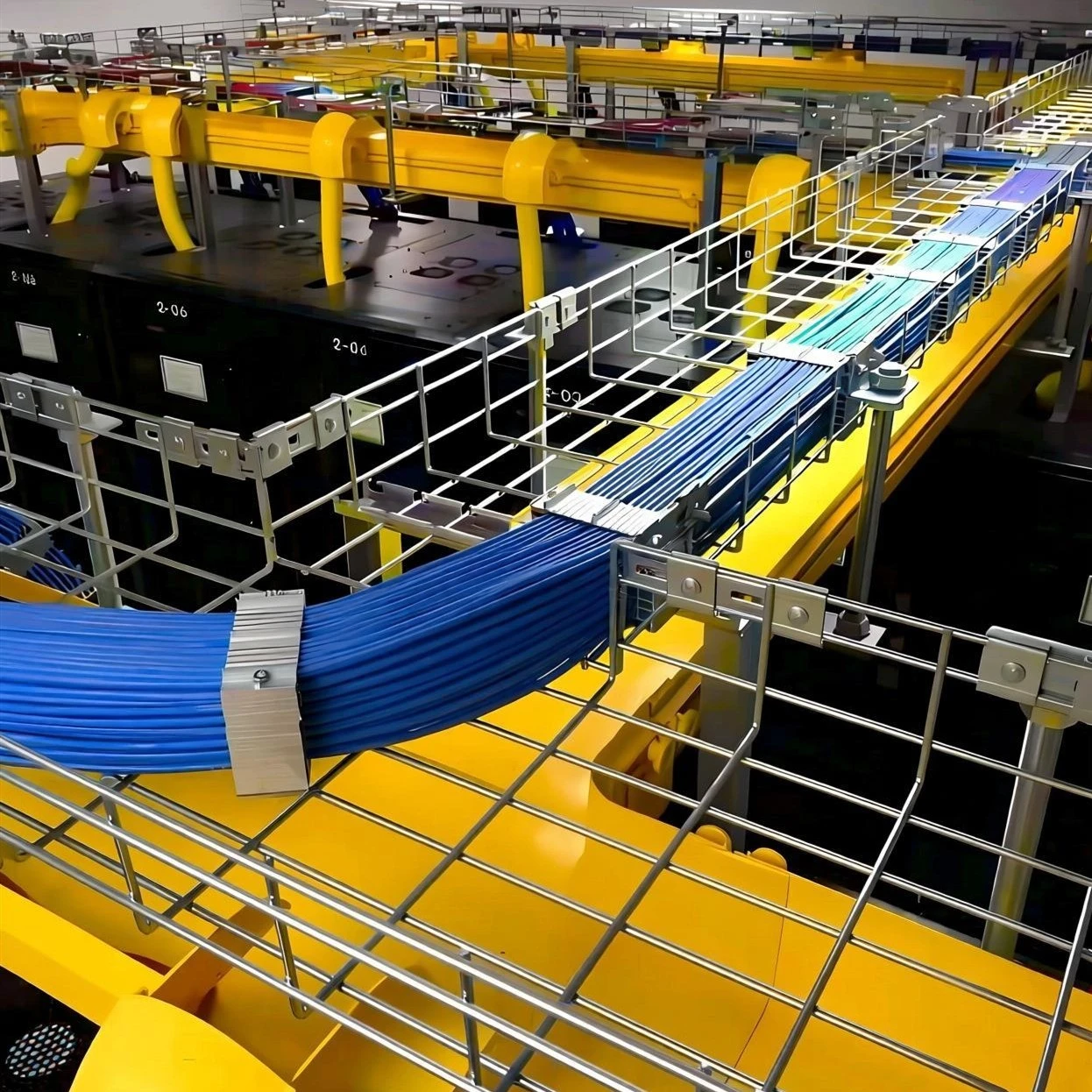

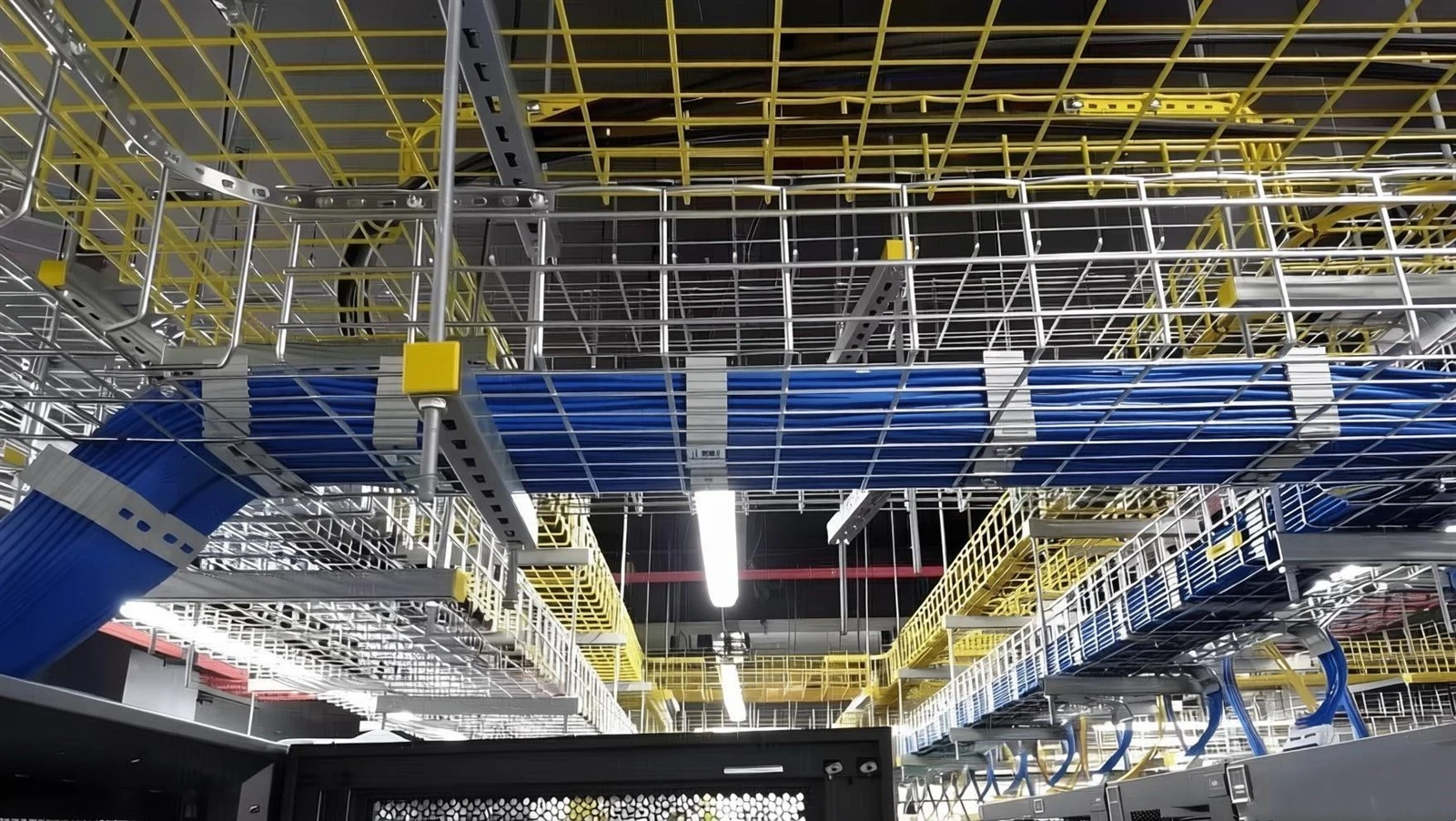

High-Capacity Data Centre Zones
In data centres, main distribution rooms and UPS battery rooms are filled with thick feeder cables that require strong support. 5mm-wire Heavy Duty Mesh Cable Tray reliably bear these heavy cables while maintaining the tidy, accessible wiring layout typical of mesh tray systems. The trays can be cut and bent on-site with common tools, making them perfect for retrofitting and wiring adjustments around existing equipment.
Product Benefits
Outstanding Load-Bearing Performance
Unlike standard mesh trays that use 3–4mm wire, heavy duty models adopt 5–6mm thick wire and a denser grid layout (such as 50×50mm mesh). This design boosts the maximum load capacity by up to 200% compared to standard products. It can stably support heavy bundled cables and armoured power cables for a long time without sagging or structural deformation.
Efficient Ventilation and Heat Dissipation
Different from solid-bottom or perforated cable trays, the fully open mesh structure enables 360° air circulation around every single cable. High-current industrial cables generate substantial heat during operation; the mesh design eliminates heat buildup, slows down cable insulation aging and reduces operational power loss. This advantage is particularly prominent in densely laid industrial cable routes.
Flexible On-Site Customization
Despite its high structural strength, the heavy duty mesh cable tray can be cut, bent and adjusted on-site with ordinary hand tools. Construction teams can make custom bends, slope adjustments and branch connections freely, with no need to pre-order customized prefabricated parts. For complex industrial wiring layouts with obstacles and elevation changes, this flexibility greatly saves engineering planning and delivery cycles.
Cable-Friendly Support Design
All welding joints on the mesh tray are polished smooth, leaving no sharp edges or burrs. This prevents abrasion and damage to the thick yet fragile outer jackets of heavy cables during laying and use. The open grid also allows cables to enter or exit freely at any position, eliminating the need for drilling holes in solid tray panels.
Reliable Long-Term Corrosion Resistance
For outdoor and harsh working environments, the trays are available with hot-dip galvanized coating (thickness over 60μm) or 304/316L stainless steel material. The reinforced heavy-duty frame maintains complete structural stability after decades of outdoor exposure. With proper touch-up treatment, all welding seams and cut edges can be fully covered by anti-corrosion layers for lasting protection.
Full Compatibility with Supporting Accessories
A complete set of matching heavy-duty accessories is available, including horizontal bends, vertical elbows, tees, crosses, end caps and reinforced mounting brackets. All connecting parts and bolts adopt galvanized or stainless steel materials, forming a fully consistent system that delivers the same load-bearing performance as standard straight tray sections.
Lower Overall Installation and Operation Costs
Lighter in weight than solid cable trays, heavy duty mesh trays reduce shipping and on-site handling costs. Tool-only quick assembly effectively cuts down manual working hours. On-site modification capabilities also avoid material waste caused by misordered prefabricated parts. In the long run, excellent durability minimizes equipment replacement frequency and daily maintenance workload, further lowering overall operational costs.
