Hebei Shenyi Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of wire mesh cable channel in China. If you're going to wholesale bulk wire mesh cable channel made in China, welcome to get free sample from our factory. All customized metal products are with high quality and competitive price.
Key Features
Open Mesh Construction
The channel is formed from high-strength steel wire (typically 3–6 mm diameter) welded into a uniform grid pattern, e.g., 50×100 mm or 50×50 mm. This open design eliminates hidden spaces while maintaining structural rigidity. The channel shape - with two side walls and a flat or slightly curved base - contains cables neatly, preventing them from rolling off or spreading sideways.
Smooth, Cable-Friendly Surface
Every welded intersection is ground flush; all cut ends are deburred and, for galvanised versions, touched up with zinc-rich paint. The result is a completely smooth contact surface. No sharp edges or protruding weld spatter can damage cable insulation during pulling or long-term vibration.
Lightweight yet Strong
The wire mesh structure uses less material than solid sheet-metal channels, reducing self‑weight by 50–70% for the same load capacity. Despite its low mass, the welded grid provides excellent bending resistance and can support bundled cable loads up to several hundred kilograms per meter, depending on wire gauge and support spacing.
On‑Site Cuttable and Bendable
Using ordinary hand tools (e.g., bolt cutters or a hacksaw), installers can cut the channel to any length and form simple bends directly on site. Pre‑formed elbows, tees, and crosses are also available as accessories, but the material's inherent flexibility allows custom modifications without special machinery. This feature dramatically reduces lead times for complex routes.
Complete Accessory Ecosystem
The wire mesh cable channel is designed to work with a full range of compatible fittings: horizontal and vertical bends, reducing tees, end caps, splice plates, connecting bolts, and wall/ceiling support brackets. All accessories are produced from the same material and with the same surface finish as the channel, ensuring uniform corrosion protection and mechanical compatibility.
Quick Assembly
No special tools are required for joining sections. Splice plates and bolts (stainless steel supplied for outdoor use) allow rapid connection. The open grid also makes cable laying easy: simply lay cables into the channel from above or through the side mesh, then secure with nylon ties or Velcro straps at any grid point.
Size Range:
|
Dimension |
Range |
|
Width |
50-1000 mm |
|
Height |
25-200 mm |
|
Length |
300-4000 mm |
|
Wire Diameter |
3-6 mm |
Benefits
Superior Heat Dissipation
Because the channel is open on top and has mesh side walls, heat generated by current‑carrying cables can escape freely. This prevents hot‑spot accumulation, reduces insulation aging, and maintains signal integrity for data cables. Compared to closed conduits or solid-bottom channels, the wire mesh version keeps cables significantly cooler, extending system life.
Excellent Cable Protection
The smooth, burr‑free surface eliminates abrasion and cuts. The raised side walls prevent cables from spilling sideways, and the enclosed yet open design keeps cables contained while still allowing visual inspection. For sensitive cables (e.g., fiber optics, Cat6a, fire alarm circuits), this gentle support is critical.
Easy Cable Additions and Changes
Unlike closed raceways, where adding a new cable often requires pulling through existing bundles or removing covers, the wire mesh channel allows instant access. Simply cut the cable tie, lay the new cable into the channel from above, and re‑secure. No dismantling, no disruption to existing circuits. This "open maintenance" feature greatly reduces downtime and labor costs for future expansions.
Aesthetic and Visible Cable Management

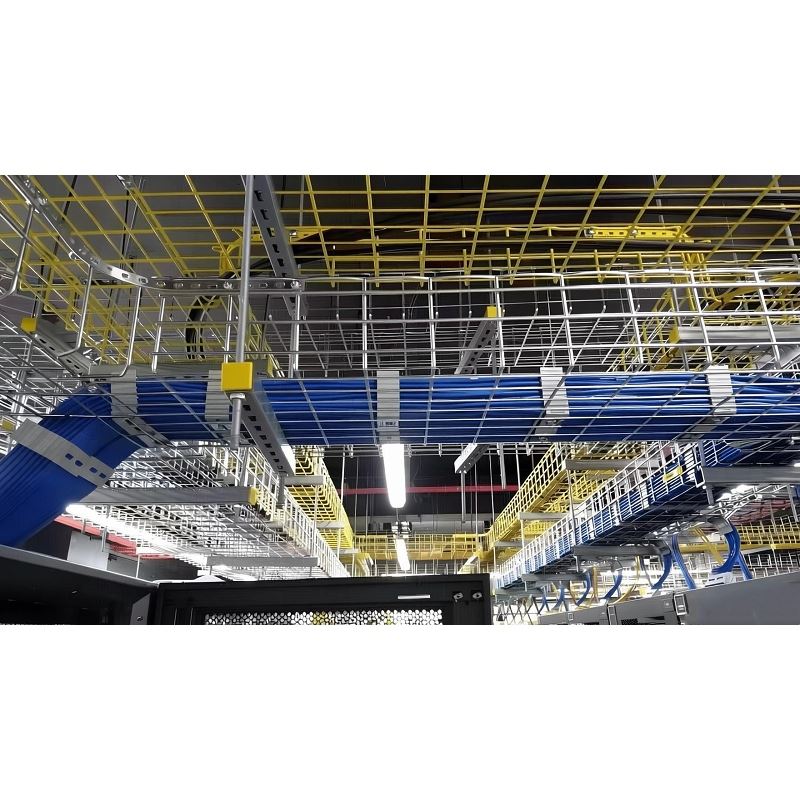

The uniform grid pattern provides a neat, professional appearance, often preferred in data centers, telecom rooms, and open-ceiling commercial spaces. Because cables are visible, technicians can quickly trace routes, identify problems, and verify separation of power and data lines – improving safety and troubleshooting speed.
Adaptability to Complex Routes
With on‑site cutability, field‑formed bends, and a full range of accessories, the wire mesh cable channel handles any layout: vertical drops, horizontal curves, slopes, T‑branches, and cross junctions. It works equally well on walls, under raised floors, above suspended ceilings, or mounted on strut supports.
Fire Safety and Environmental Compliance
Steel mesh channels are non‑combustible. When specified with hot‑dip galvanising or stainless steel, they provide zero flame spread and no toxic smoke emission. The open design also prevents the accumulation of dust and debris, reducing fire load and improving hygiene – important in food plants or cleanrooms.
Summary
The Wire Mesh Cable Channel delivers a unique blend of strength, ventilation, cable protection, and installation flexibility.
Its open grid ensures cool operation, easy maintenance, and full visibility, while the range of materials and finishes guarantees long‑term reliability in any environment – from a quiet office data room to a corrosive industrial plant.
For project managers and installers seeking a fast, cost‑effective, and future‑proof cable management system, the wire mesh cable channel is the intelligent choice.
